BUILT FOR YOUR ADVENTURES

TOUGH BUILD.



Full steel construction  No breakable plastic

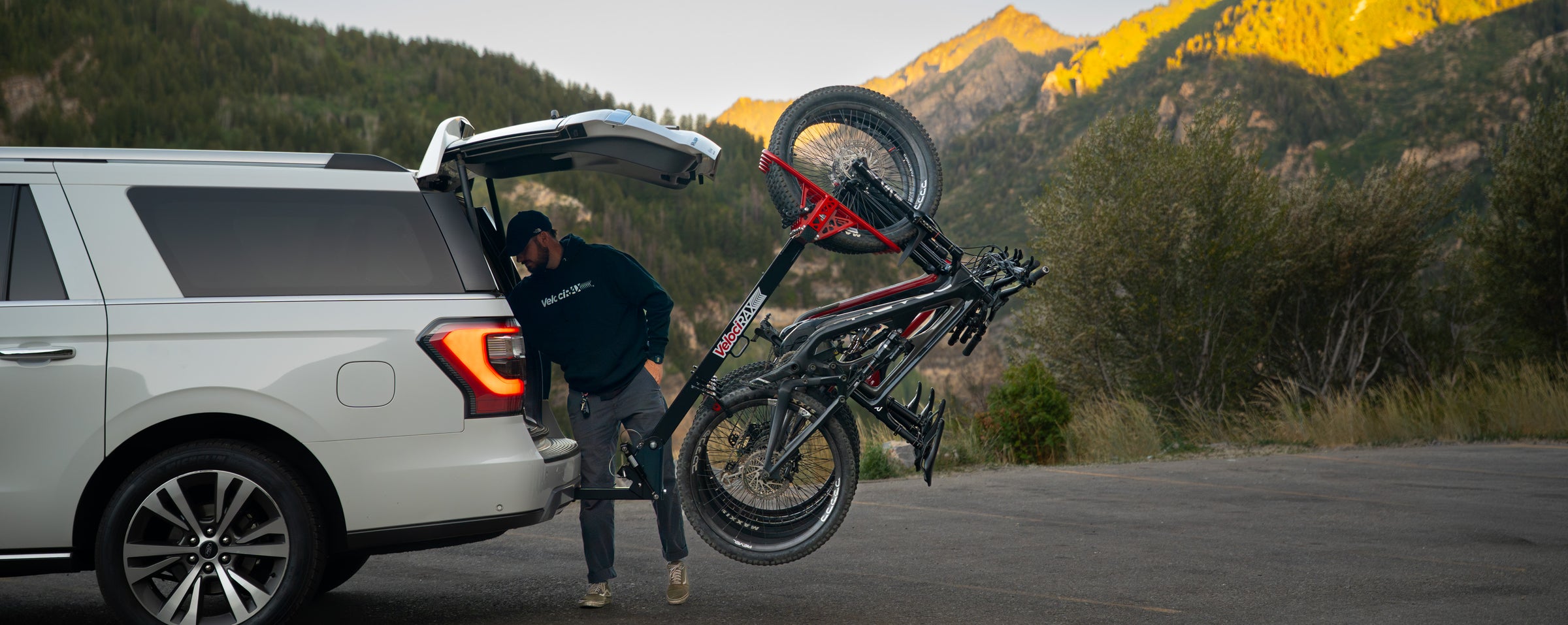

Damper-assisted hinge  No bike lifting required

EASY LOAD.

RIDER DESIGNED.

Love your bike, give it the ride it deserves

FEATURE RICH.

On your vehicle, in the garage, all the time

YOUR NEXT BIKE RACK

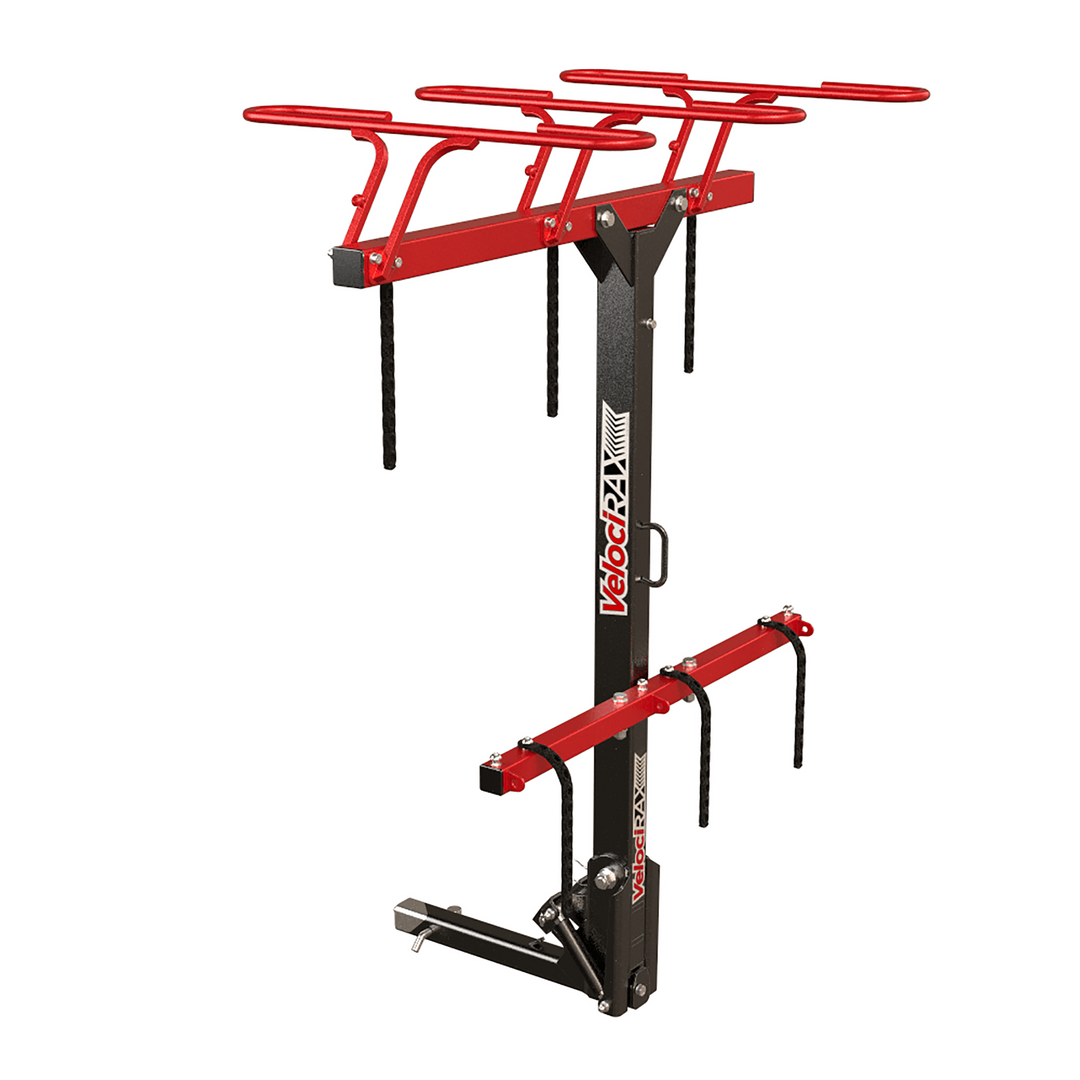

OUR RACKS

STARTING AT $699

412

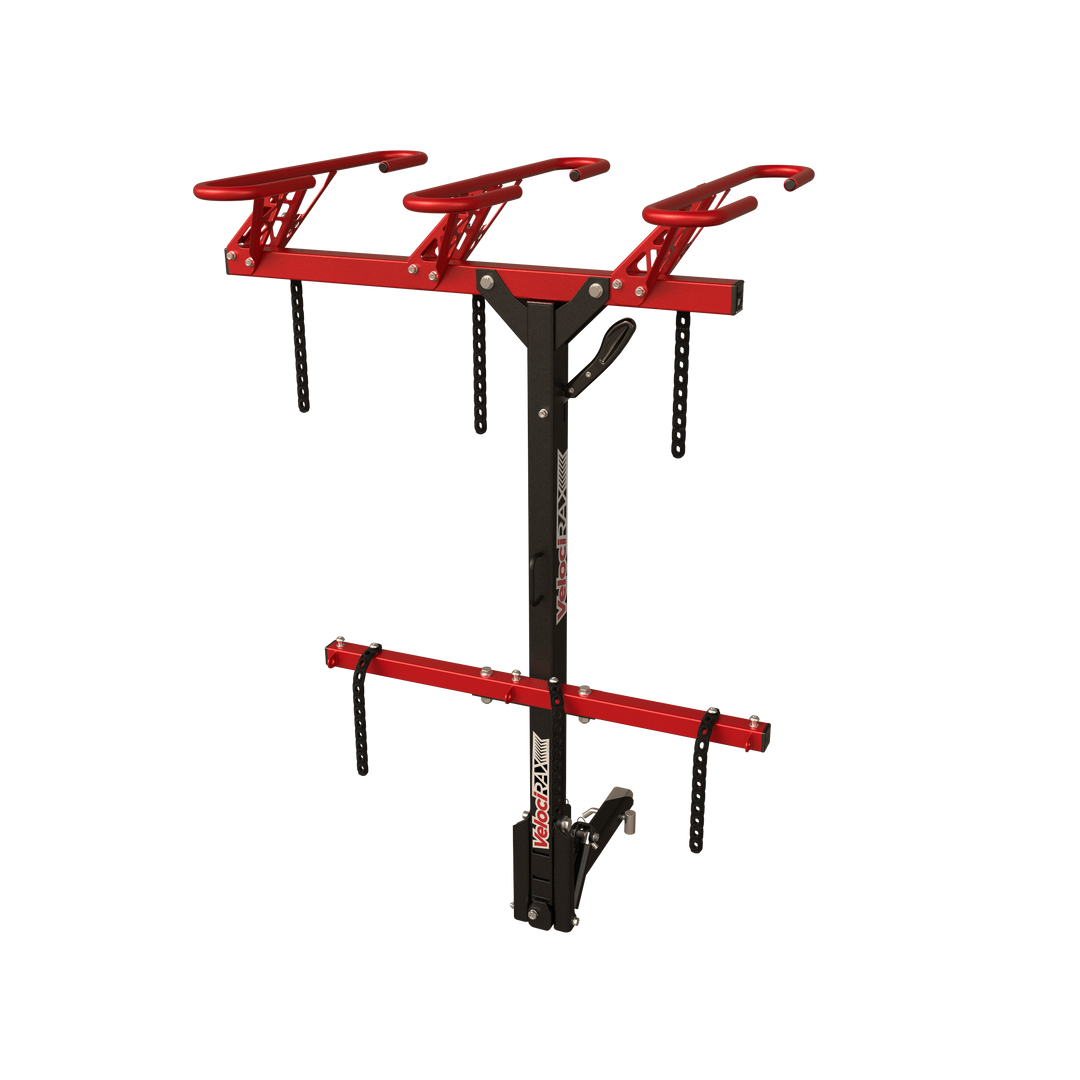

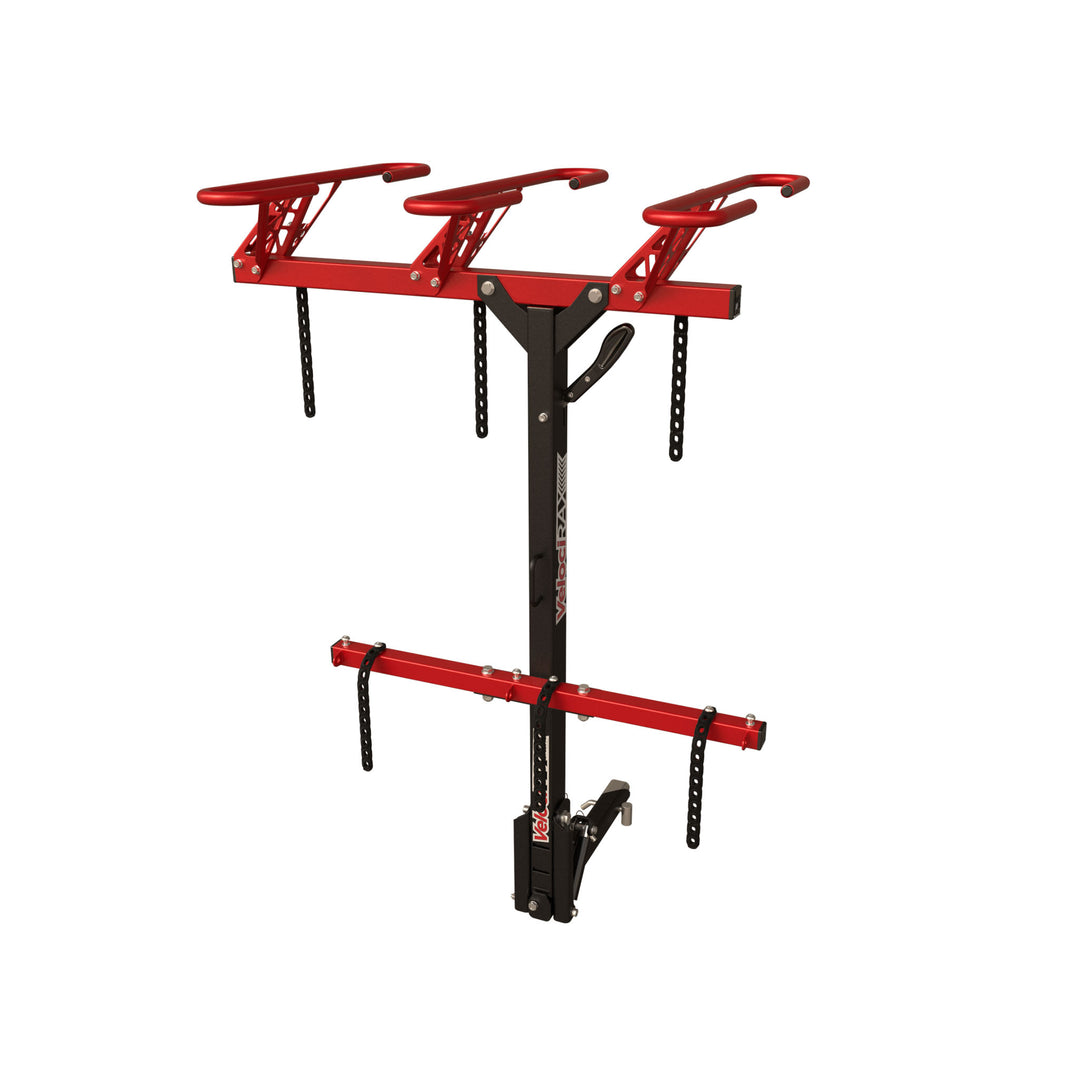

3X
5
5X
6
7

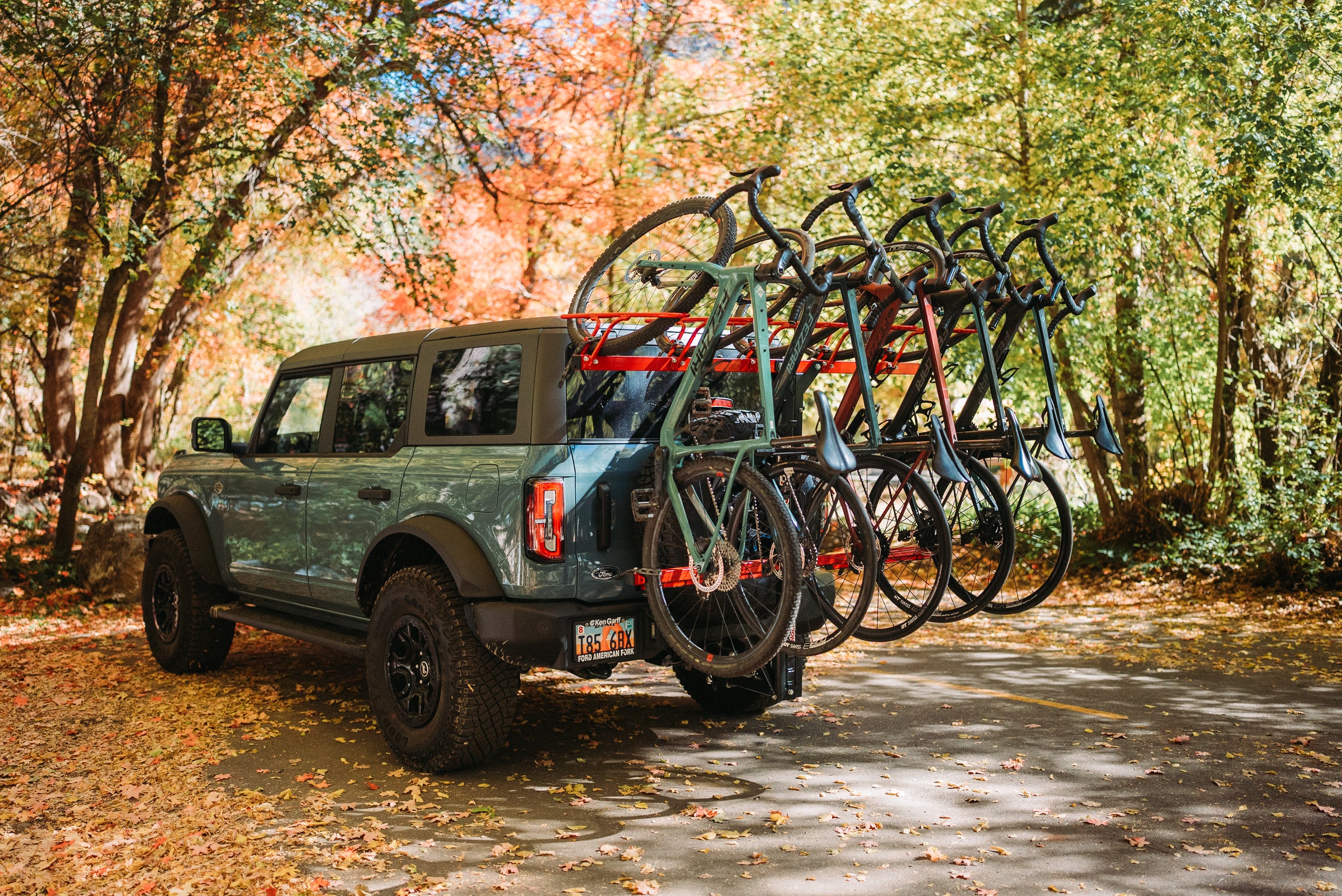

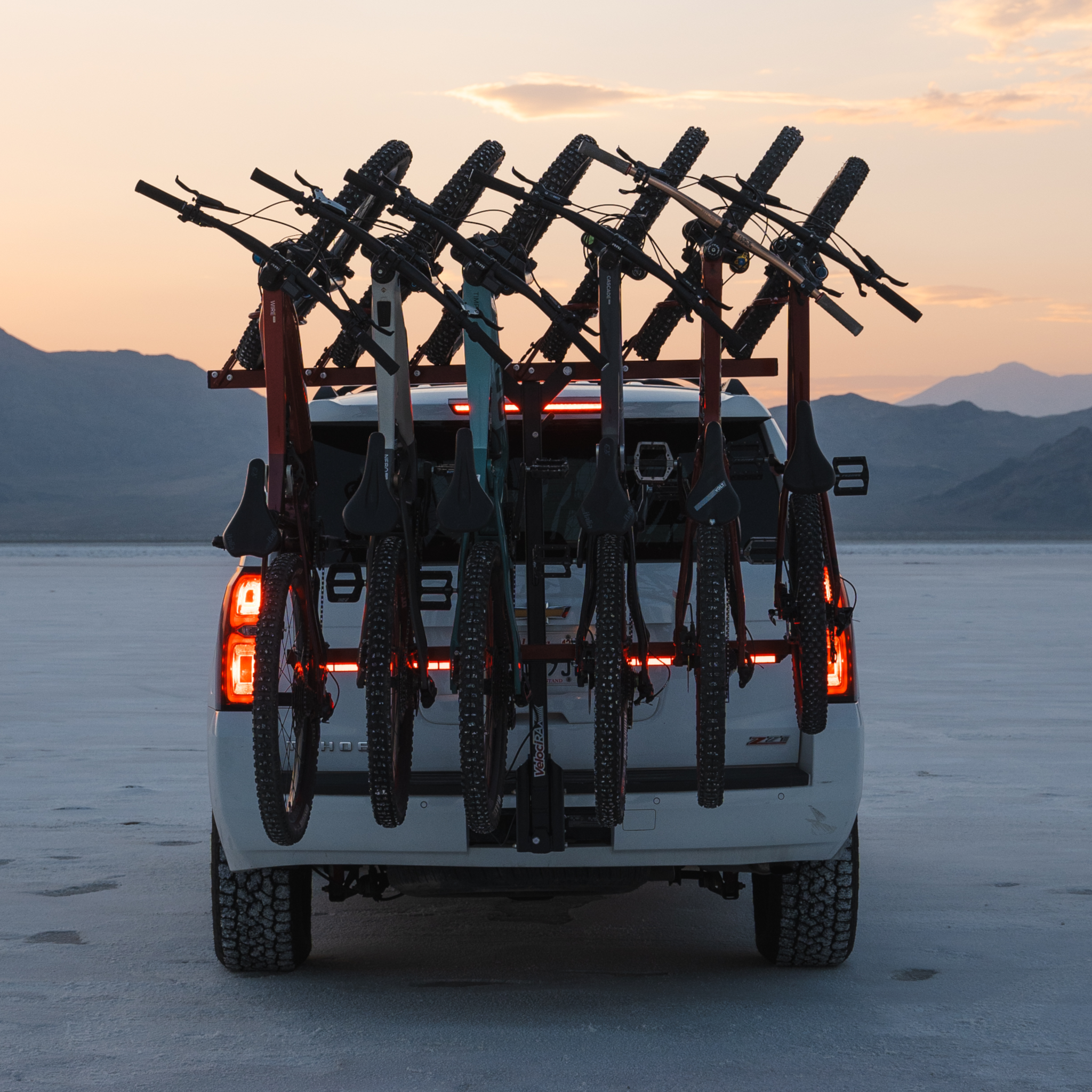

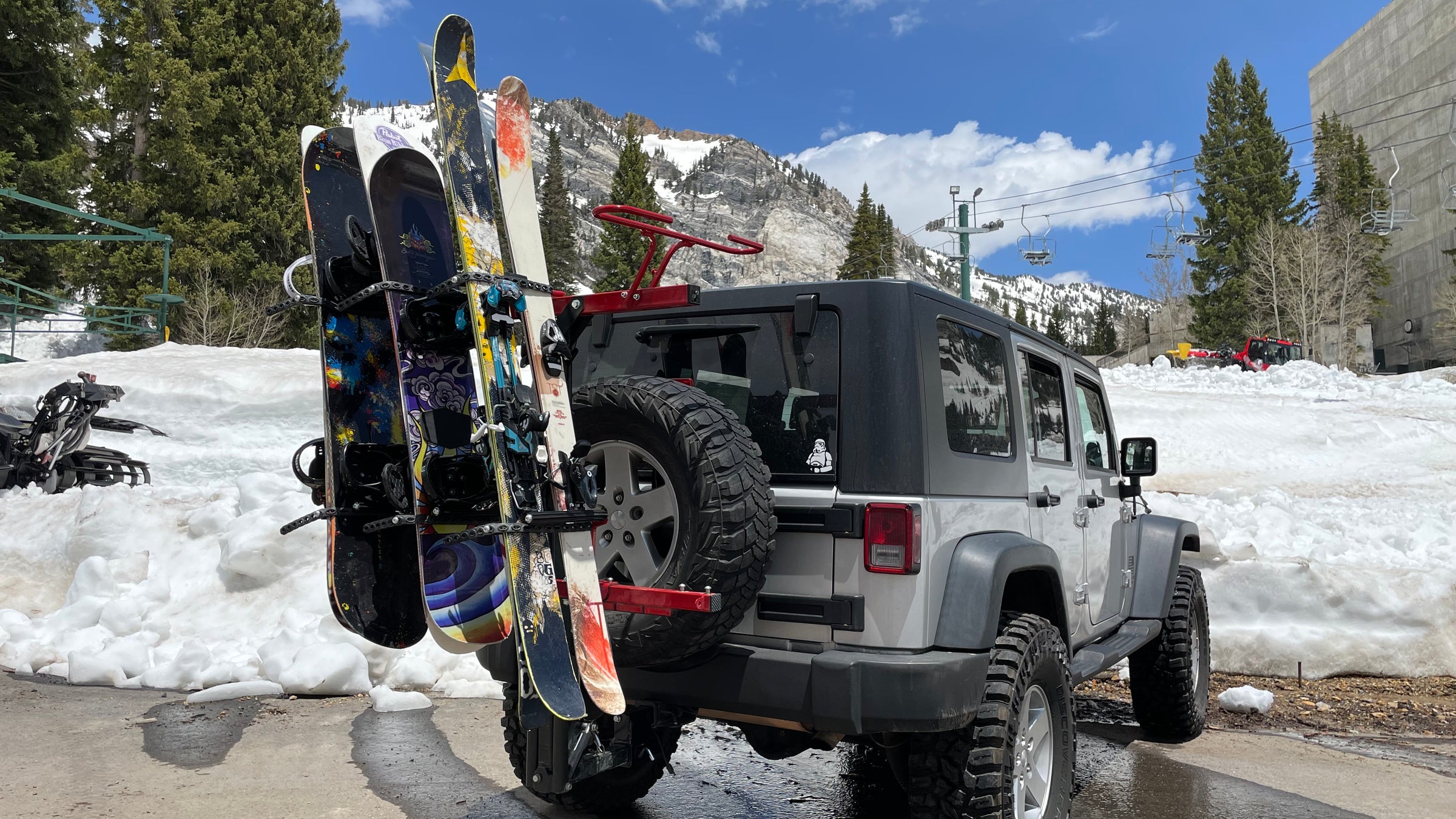

SEE OUR RACKS IN THE WILD.

VelociRAX brings together a community of riders, families, rig builders, shuttle companies, and more. Check out what they're all up to.

@velocirax

Materials

  • All steel construction

  • High strength hardware

  • Outdoor, sandblasted, powder coated finish

  • High strength UV tested rubber straps

  • Bike weight capacity 230 lbs



Assembly

  • With a few wrenches and 30 -60 minutes, you'll have your VelociRAX assembled and be ready to load bikes and head out.

Enginneering

  • Engineered, designed, and tested in overloaded conditions and proven on thousands of miles of rugged jeep roads, city streets, and highway use.

Loading

  • Roll the front tire and drop into the upper hoop

  • Lay the tire against the hoop

  • Route the VelociRAX strap through the tire and rack then secure to the strap anchor

  • Secure the rear tire in the same manner

  • Check out the videos to see this in action

Warranty:

  • 2 Year Limited Warranty for defects in materials and/or workmanship for the original retail purchaser.  This warranty does not cover normal wear and tear, scratches, accidents, misuse, or overloading.

Return Policy:

  • Returns are accepted within 30 days of receiving the rack.  Returns should be in like new condition and in original packaging. Original shipping is refunded customer is responsible for return shipping.

Hitch Requirements:

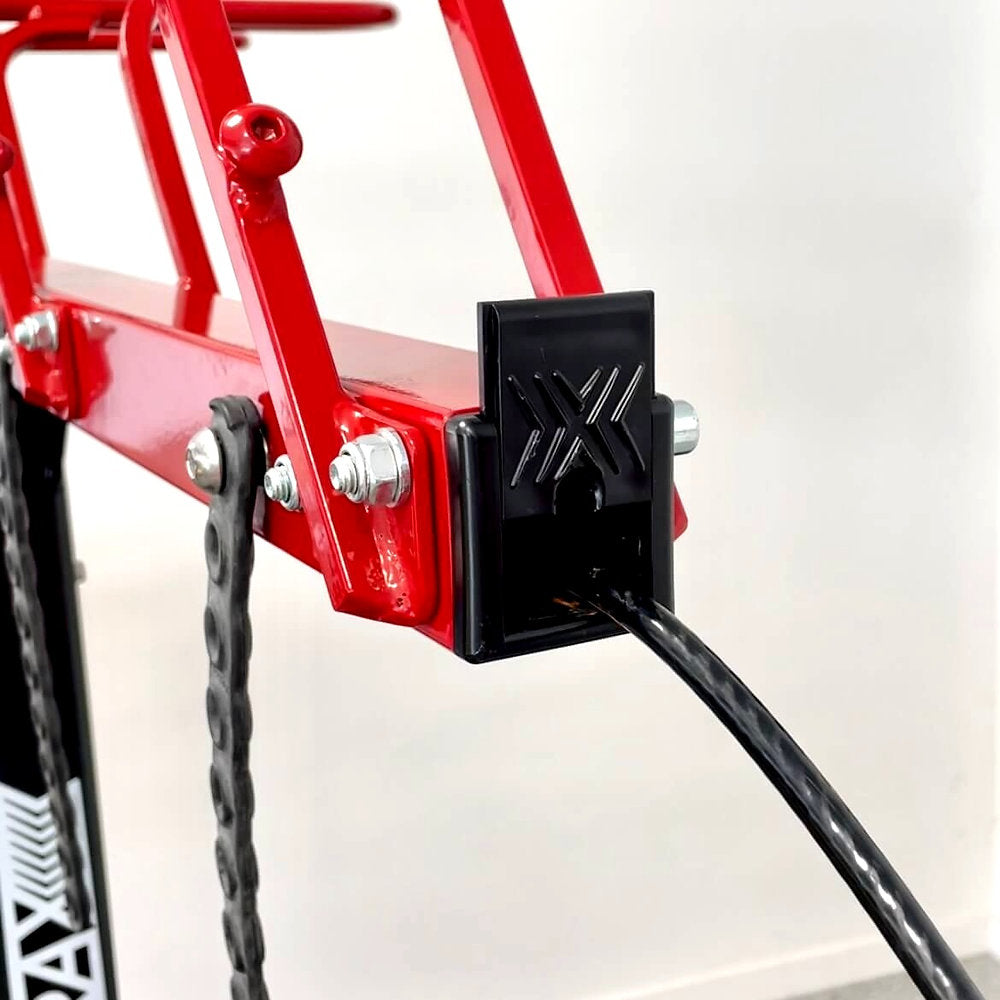

  • A Class III or higher hitch (2 inch) is required for vehicle mounting.  (500 lbs weight capacity) With provided locking hitch pin in place, a 17mm  wrench secures the proprietary anti-rattle locking system.

Specs

  • All VelociRAX models can carry 230 lbs (bike weight)

  • Each bike slot can carry up to 55 lbs

  • We recommend removing ebike batteries where possible

  • Overall height of all racks is 58 inches from the bottom of the hitch bar to the top of the tire hoops.

  • The garage bracket which comes with the rack allows easy use and access in the garage. In the garage you can place it tight on the left side but you’d want 12 inches on the right to give you a little space to load the bike on the far right.



What's Included:

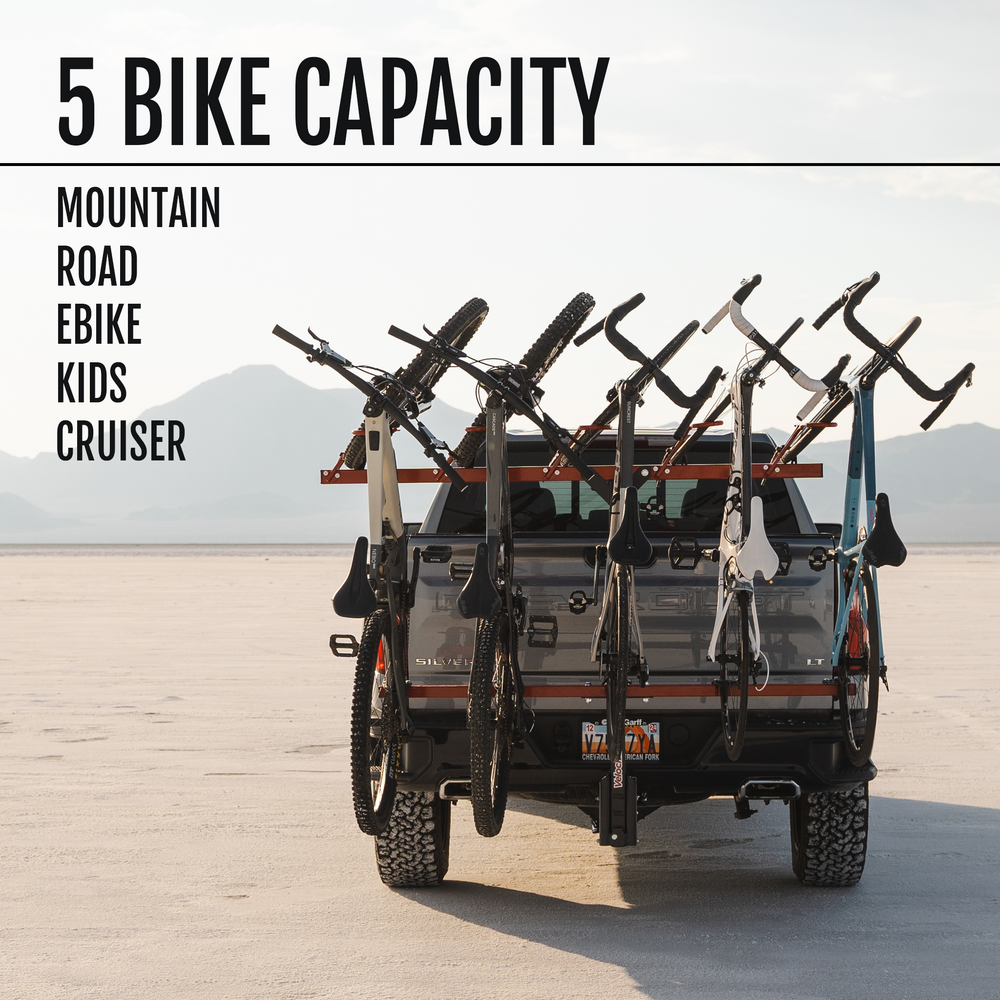

  • The VelociRAX hitch mount bike rack can hold up to 7 bikes depending on the model.

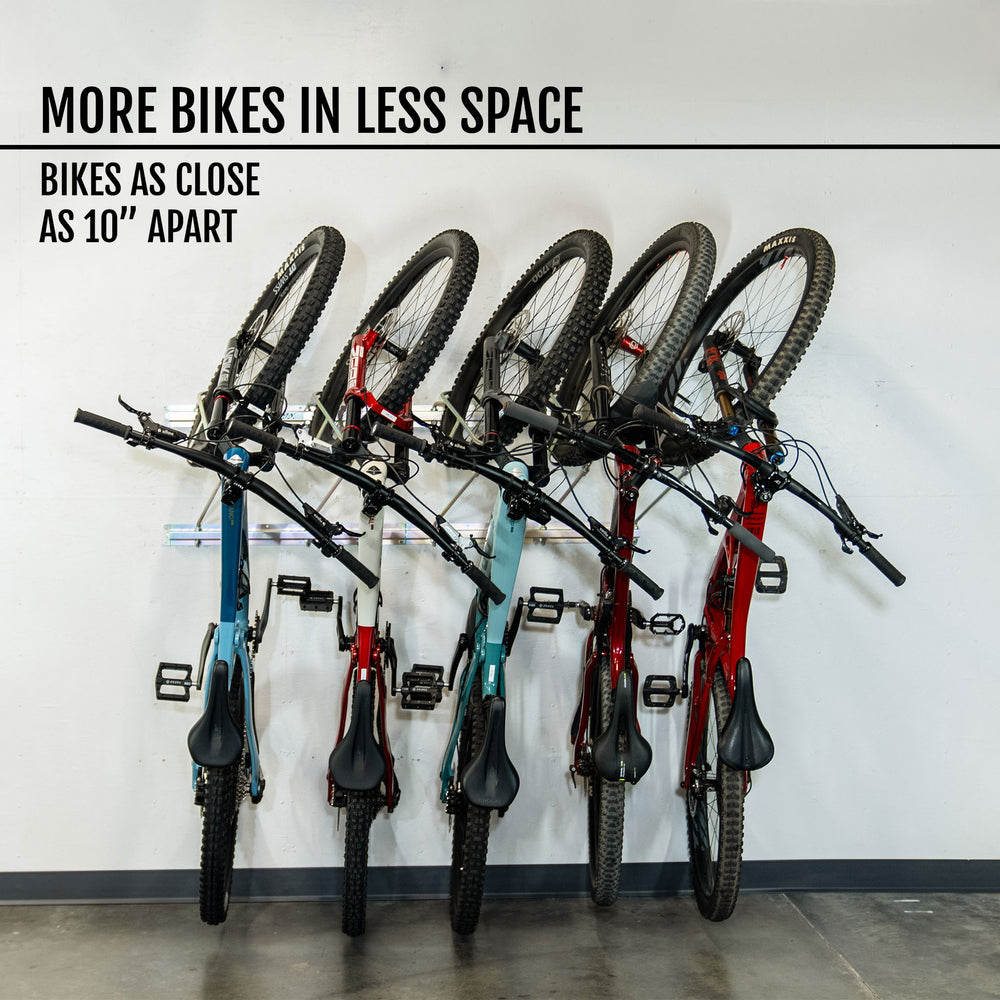

  • Garage mounting kit - Rack your bikes in the garage as well!

  • Integrated hydraulic dampers for easy hinging

  • 1/2 inch keyed hitch lock

  • Integrated anti-rattle locking system

  • VelociRAX Straps

  • All racks are hitch mount bike racks

Bikes and Tires

  • Securely holds Mountain, Road, BMX, Kids, Fat Bikes, eBikes and more.

  • Easily fits all major tire diameter and sizes.

  • 29", 27.5", 26", 24", 20" (20" may require padding to protect bike and rack)

  • 3" Plus to 700c x 23mm

  • 5" fat tires

Trailers and RVs:

  • No restrictions for the VelociRAX on travel trailers or motor homes. Please confirm the hitch on the trailer is built to handle the load and you are good to go. One item to check is if a ladder could possibly interfere with the rack.




VelociRAX - Rack’em on your vehicle AND Rack’em in the garage.  VelociRAX will organize your garage bike storage and give peace of mind when bombing down country back roads to your favorite trails.



Vertical tire mounted bikes, secure rubber mounting straps, quick and easy loading, simple hinged access, anti-rattle components, it’s got it all! All that’s needed is your favorite trail and you're ready to Ride... & Rack'em Fast.
