3 bike hitch rack
empty 3 bike vertical hitch rack
Hitch mount bike rack self lowering and hatchback opening fully.
Video of hydraulic dampers actuating to self lower a hitch mount bike rack.

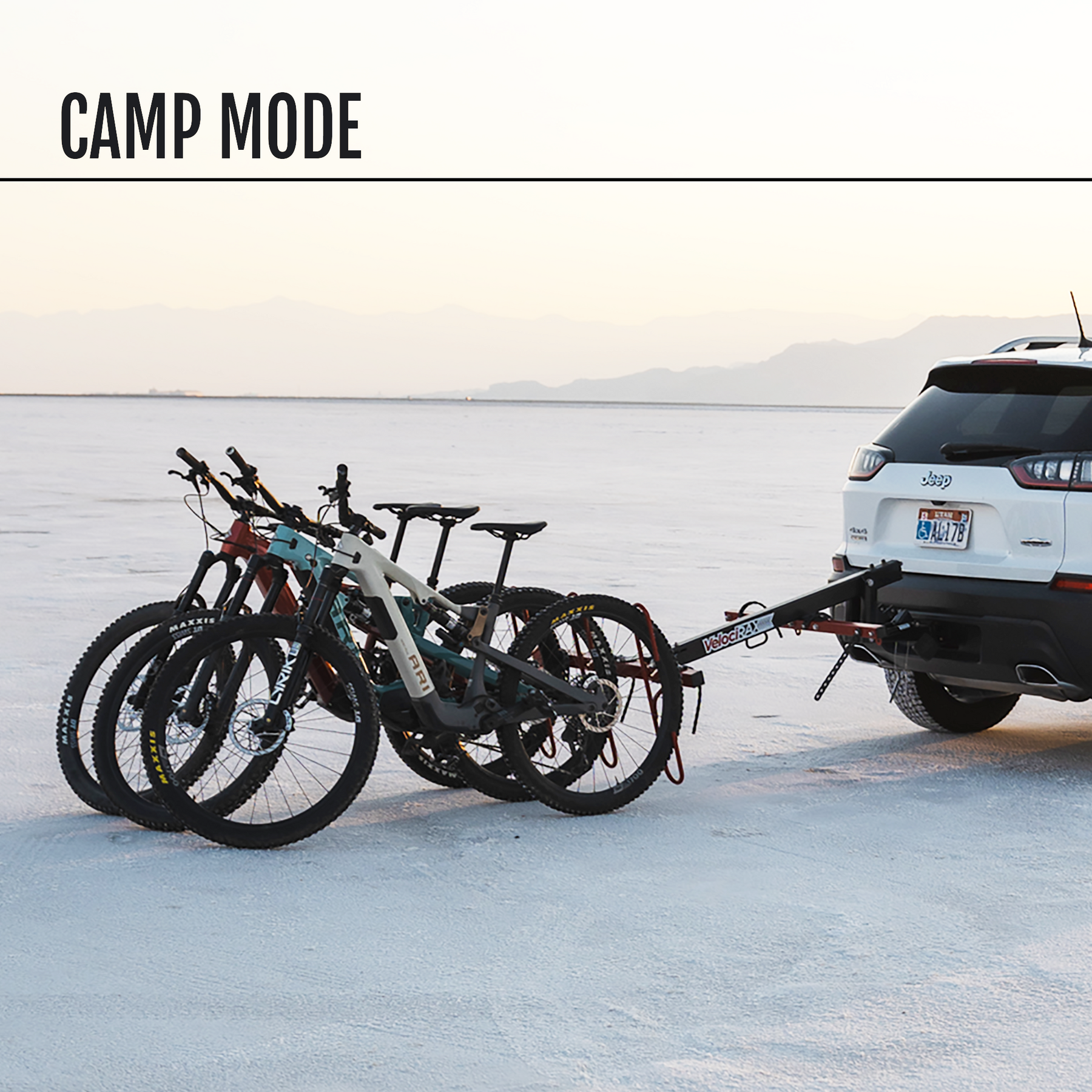

Hitch mount bike rack being lowered to camp mode video.
Van with barn style rear doors being opened all the way to access gear with hitch mounted bike rack lowered to camp mode video.
VelociRAX 3X - Pre-Order Only - Early July Delivery/Pickup
VelociRAX 3X - Pre-Order Only - Early July Delivery/Pickup
VelociRAX 3X - Pre-Order Only - Early July Delivery/Pickup

VelociRAX 3X - Pre-Order Only - Early July Delivery/Pickup

Regular price$799.00
/
Shipping calculated at checkout.

  • Orders ship next business day
  • If choosing Local Pickup DO NOT USE Apple Pay as it defaults to shipping your order
  • Low stock - 8 items left
  • Inventory on the way

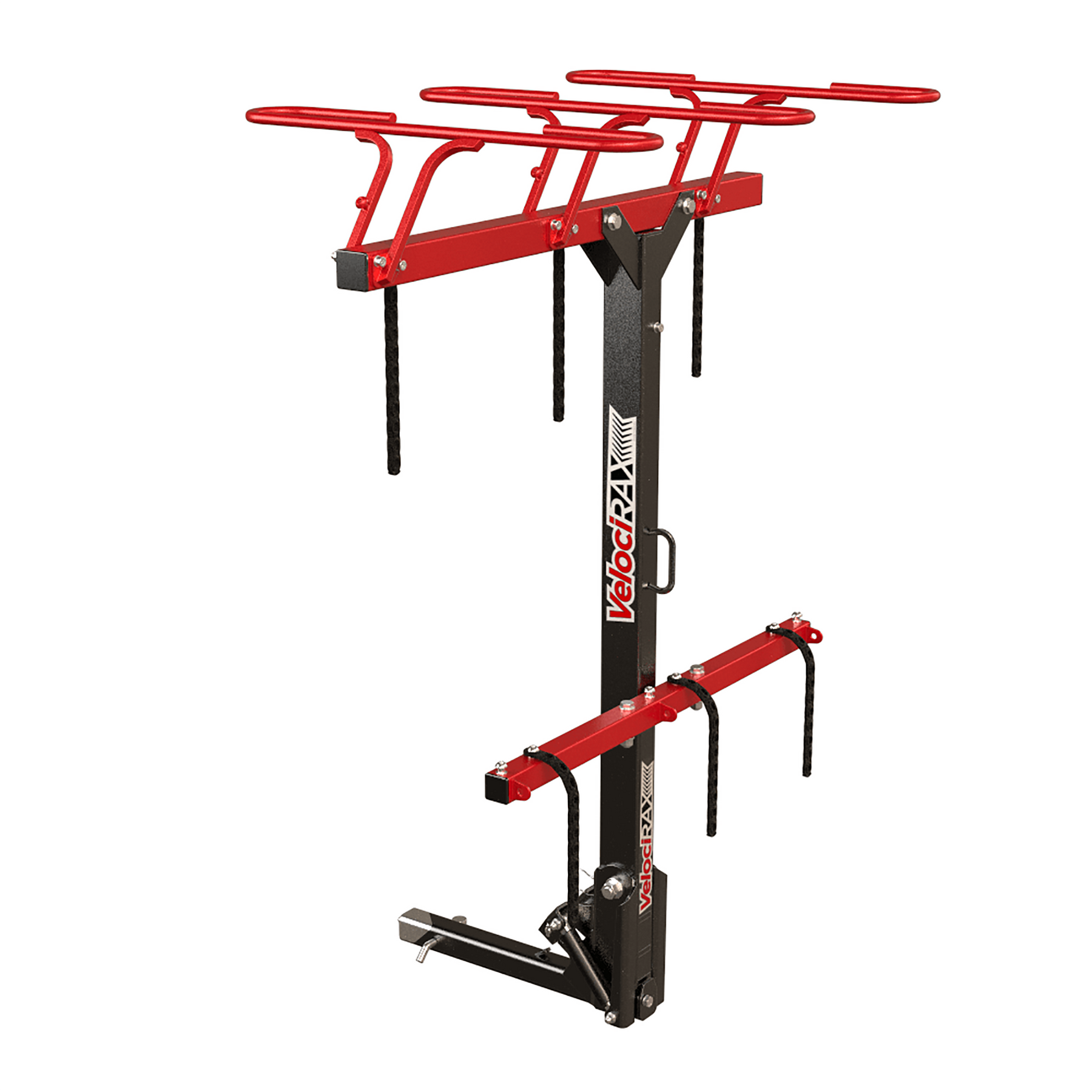

The VelociRAX 3X vertical bike rack holds up to 3 bikes and has 15-inch spacing between tire baskets. This rack is ideal for small groups and can store a wide variety of bike styles and sizes. Comfortably load this rack with three road bikes or throw on a combination of road, mountain bikes, or e-bikes with the available spacing. UV-tested rubber straps are included to secure bikes while ONLY contacting the tires. When looking for a bike rack for a small group, this one is the way to go for optimal storage, easy usage, and bike security.

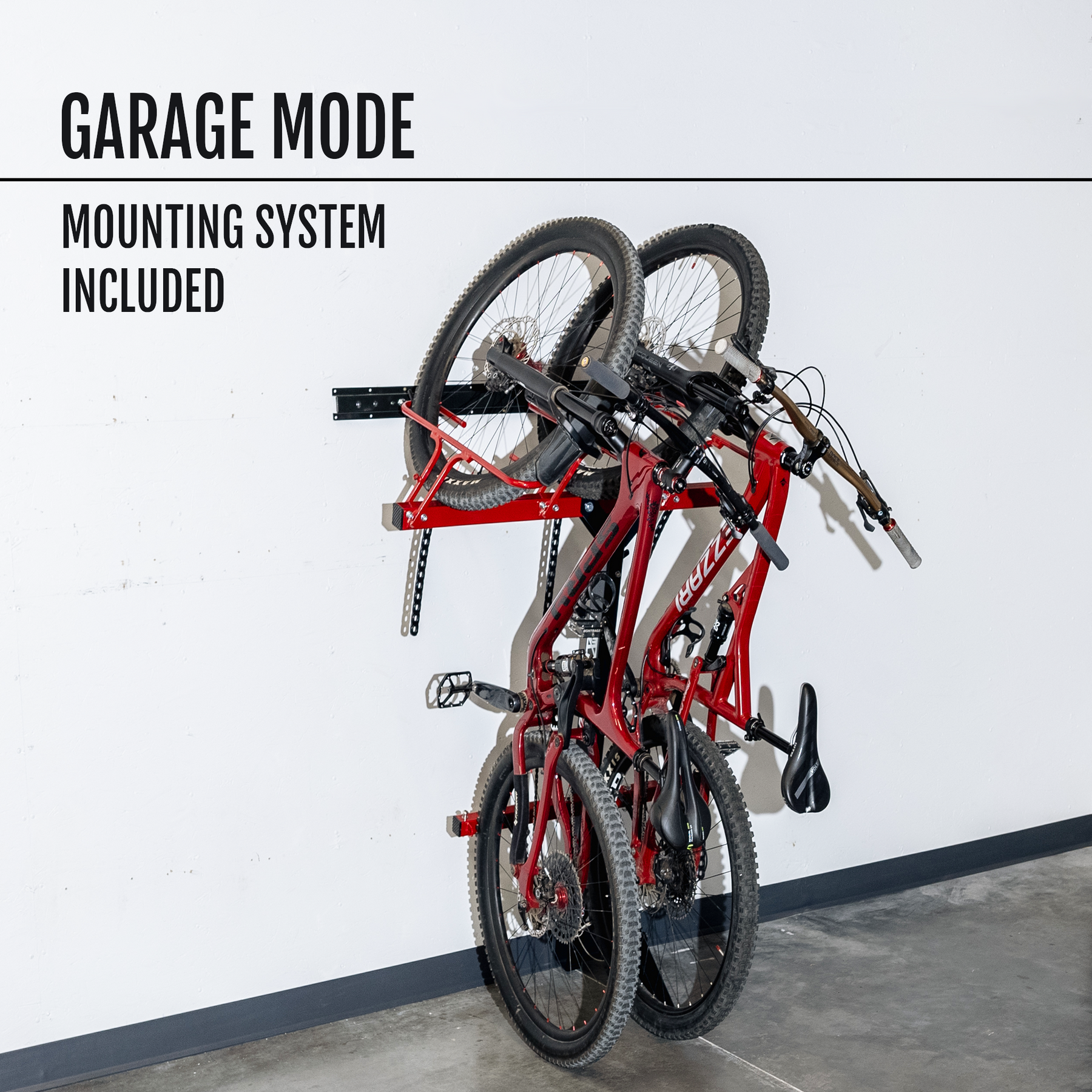

VelociRAX are patent pending with user-friendly features. There is no need to lift bikes onto this rack when using the roll in and roll out loading method, which means kids can load their own bikes! Integrated hydraulic dampers assist fully loaded racks when lowering to the load position, so don’t worry about bikes crashing down when lowering the rack. All VelociRAX also come with a garage wall mount to store the rack with bikes when not on a vehicle.

- Hinge assist dampers for fully loaded hinging
- Garage wall mounting kit
- Built-in anti-rattle mechanism
- VelociRAX tire straps
- Rubber bands for brake lever engagement
- 1/2 inch hitch pin with keyed lock
- All needed hardware
- Assembly and Use Instructions​
- US Pat. No. 11,554,724 & 11,572,022 and Patents Pending

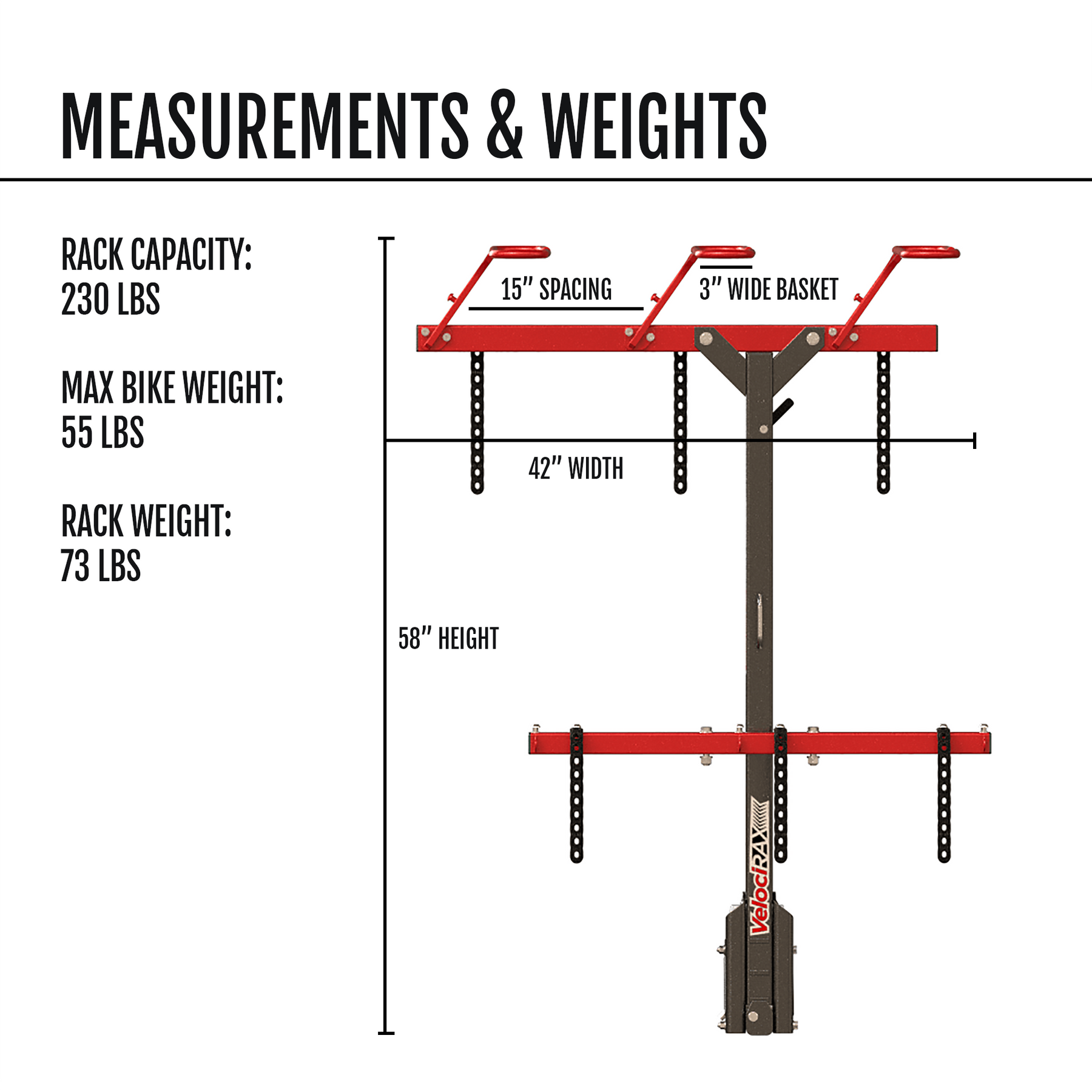

- 15-inch spacing between bikes

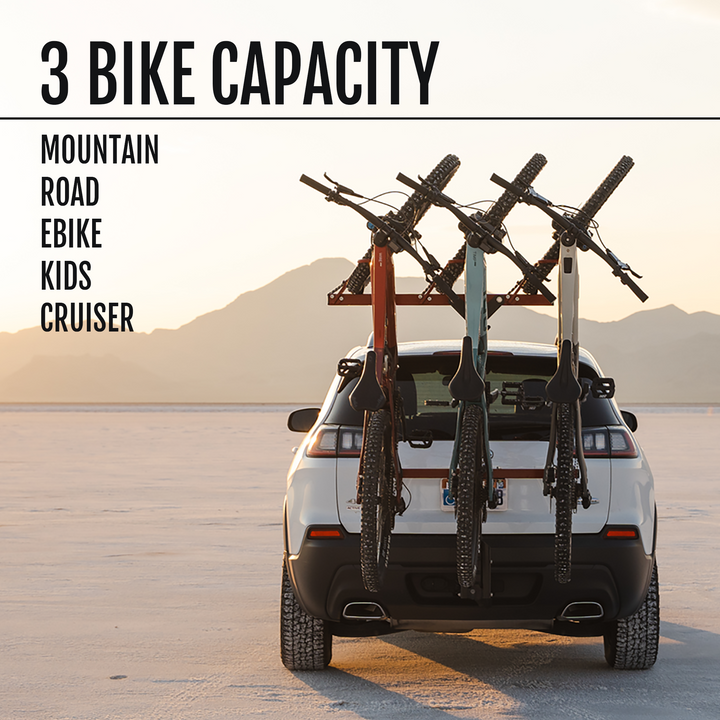

- Hitch mounted vertical bike rack holding up to 3 bikes
- Assembled width 42 inches
- Assembled height 58 inches
- Weight 73 lbs
- Load capacity 230 bike pounds at 55 pounds per bike max
- eBike ready: 3 standard ebikes (we recommend removing batteries if you are able)

- 2" (50mm) Class III  hitch with tongue capacity of 500 lbs
- 3 3/8 inch (86mm) depth past center of hitch pin hole to insert a VelociRAX
** Note - Check factory OEM hitch receivers on newer Subaru CrossTrek and Outback and Ford Ranger as they may lack sufficient depth on the factory hitch receiver.

Instructions for building your VelociRAX
PDF                               VIDEO

- Orders ship next business day
- FedEx Ground Delivery (No PO Boxes)
- Local Pick Up available in Utah

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

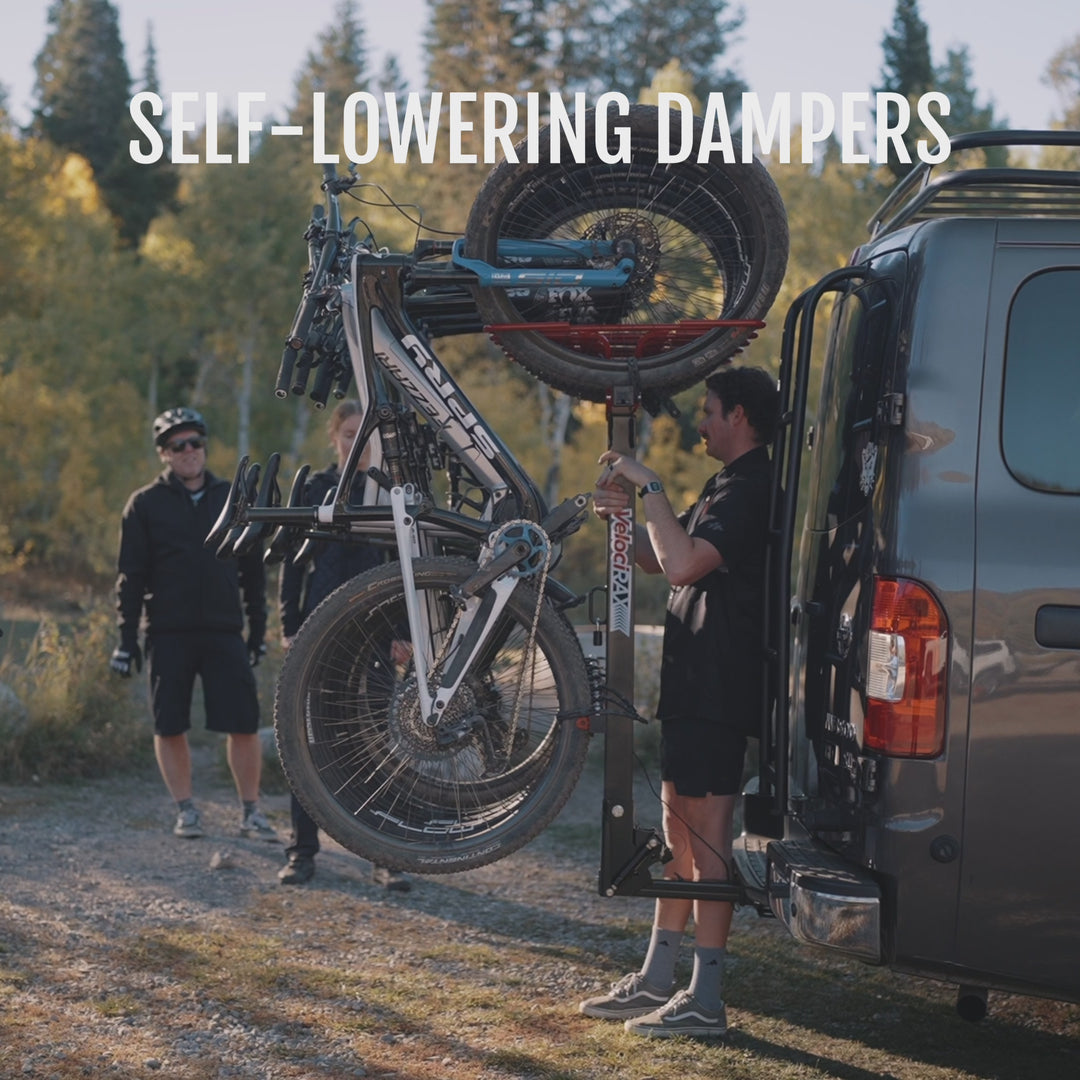

Self Lowering

Integrated Hydraulic Dampers

Fully assisted lowering down to the loading position.

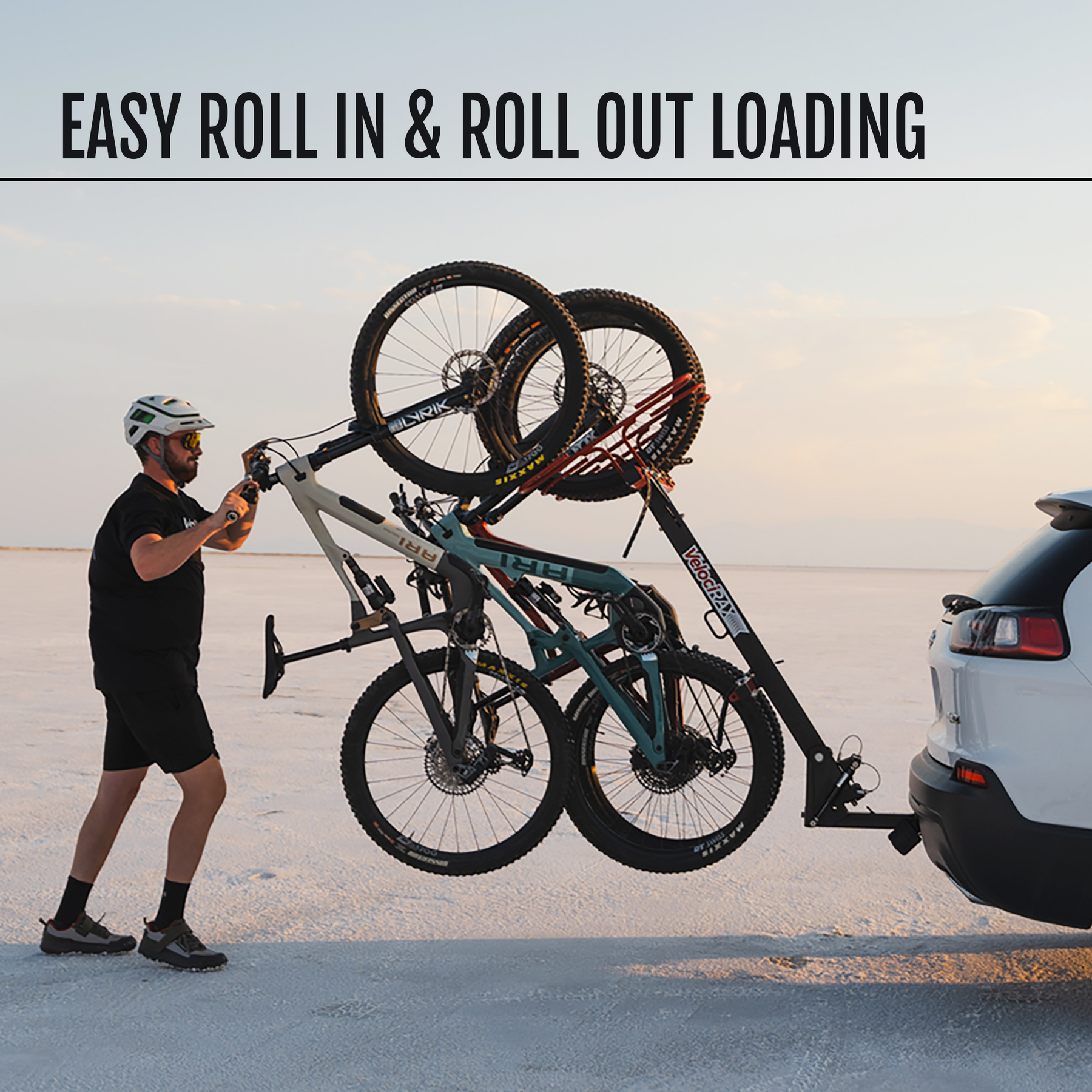

Fast & Easy Loading

Hit the trails faster, pack up and be on your way easier with roll in and out loading.

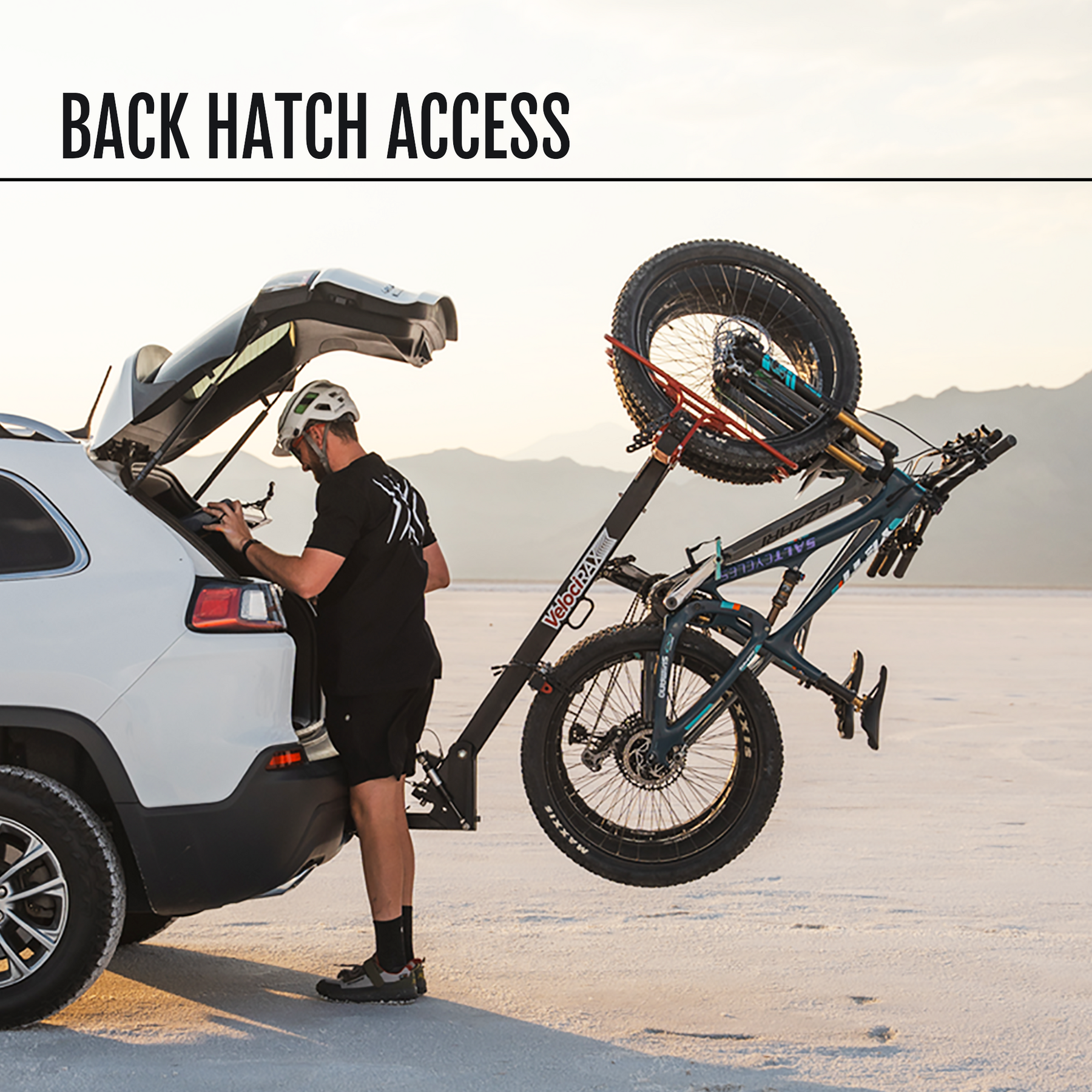

Full Vehicle Access

Get to all your gear without removing your rack.

4 hitch bike rack with SUV trunk open

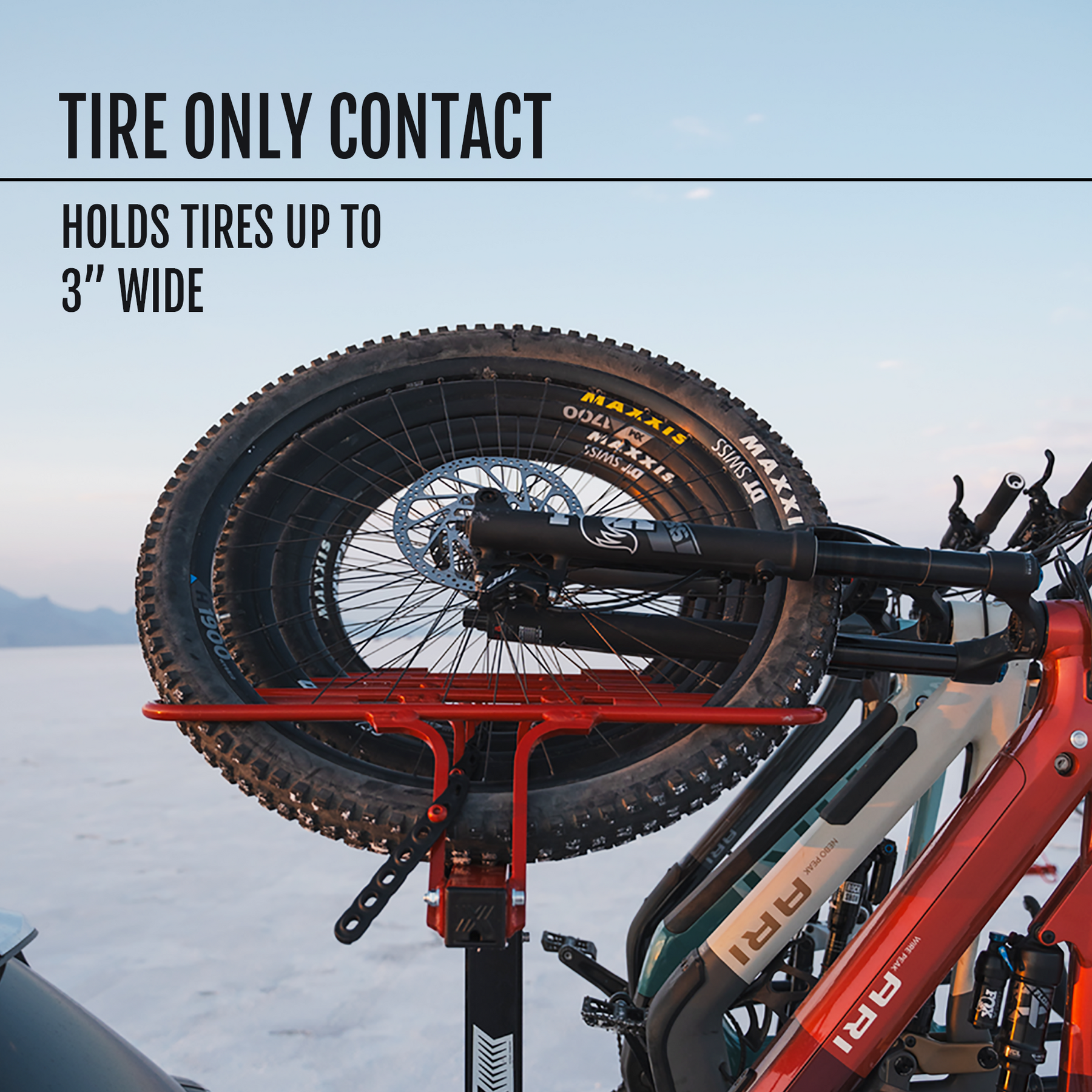

Tire Only Contact

No hanging by the forks or frame, or risking damage to expensive bikes. VelociRAX features tire only contact to protect your bikes.
